Transport Equipment

Al Shirawi Equipment Company with its ATLAS brand is a leader in transport equipment fabrication serving some of the finest clientele in the region and caters to some worldwide markets as well. Our projects are a true testimonial of our capabilities, as we continue to execute the most complex fabrication requirements in the region.

Our solutions range from initial planning through to procurement, construction management, and commissioning & operational support services. By combining our facilities from engineering, design and detailing through fabrication, erection and quality testing, we deliver fully integrated project management services matching international standards.

New Generation Tipping Semi Trailer

Capacity: 48 Cu.M

Aero dynamic design

Light weight and Low maintenance.

Capacity: 48 Cu.M

Aero dynamic design

Light weight and Low maintenance.

High yield strength Fabricated Beam and Cross members produced from SSAB’s Strenx 700

Body is made of HARDOX high-resistant steel plate which is highly durable and wear resistant.

100 ton hydraulic cylinder (Hyva/Binotto/Penta)

BPW (Europe) make 3x16 ton Heavy Duty wide track axles & suspension

Heavy Duty Disc Rims fitted with European / Japanese tyre

Wabco (Europe) make Twin line break system with built in ABS/EBS for effective braking, reduced tire wear and safety.

Heavy Duty Landing Legs (Jost/BPW)

Heavy Duty Kingpin (Jost/GF)

High Quality External epoxy paint system, in single color of client’s choice

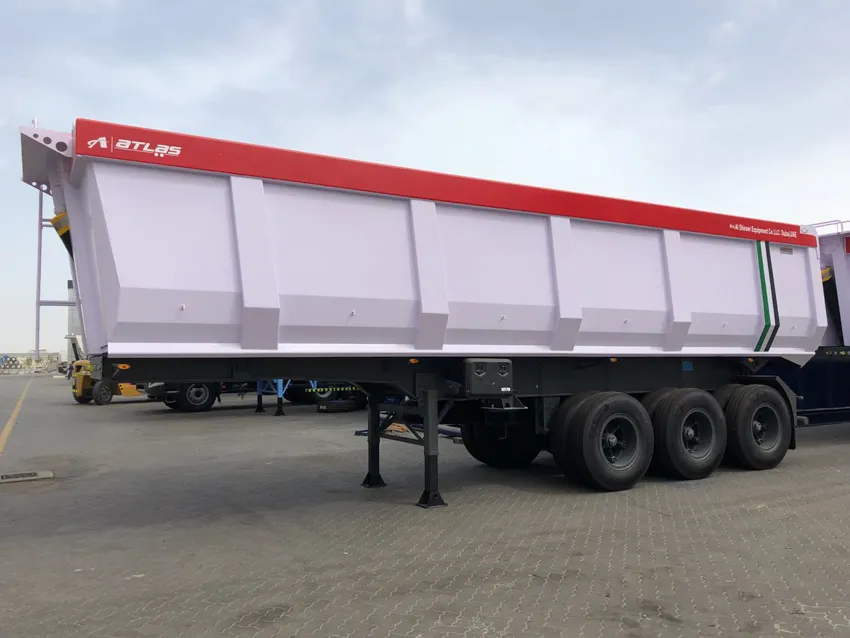

Rock Tipper Semi Trailer

Capacity : 32 cbm – 42 cbm

Body constructed from High Tensile Steel (Hardox 450 / equivalent)

Chassis constructed from hot rolled I Beams (ST 52-3)

Capacity : 32 cbm – 42 cbm

Body constructed from High Tensile Steel (Hardox 450 / equivalent)

Chassis constructed from hot rolled I Beams (ST 52-3)

Tandem/Tridem axles with Heavy Duty Suspension

Chain operated tail gate with Scow End

High quality external epoxy paint system in single color of client’s choice

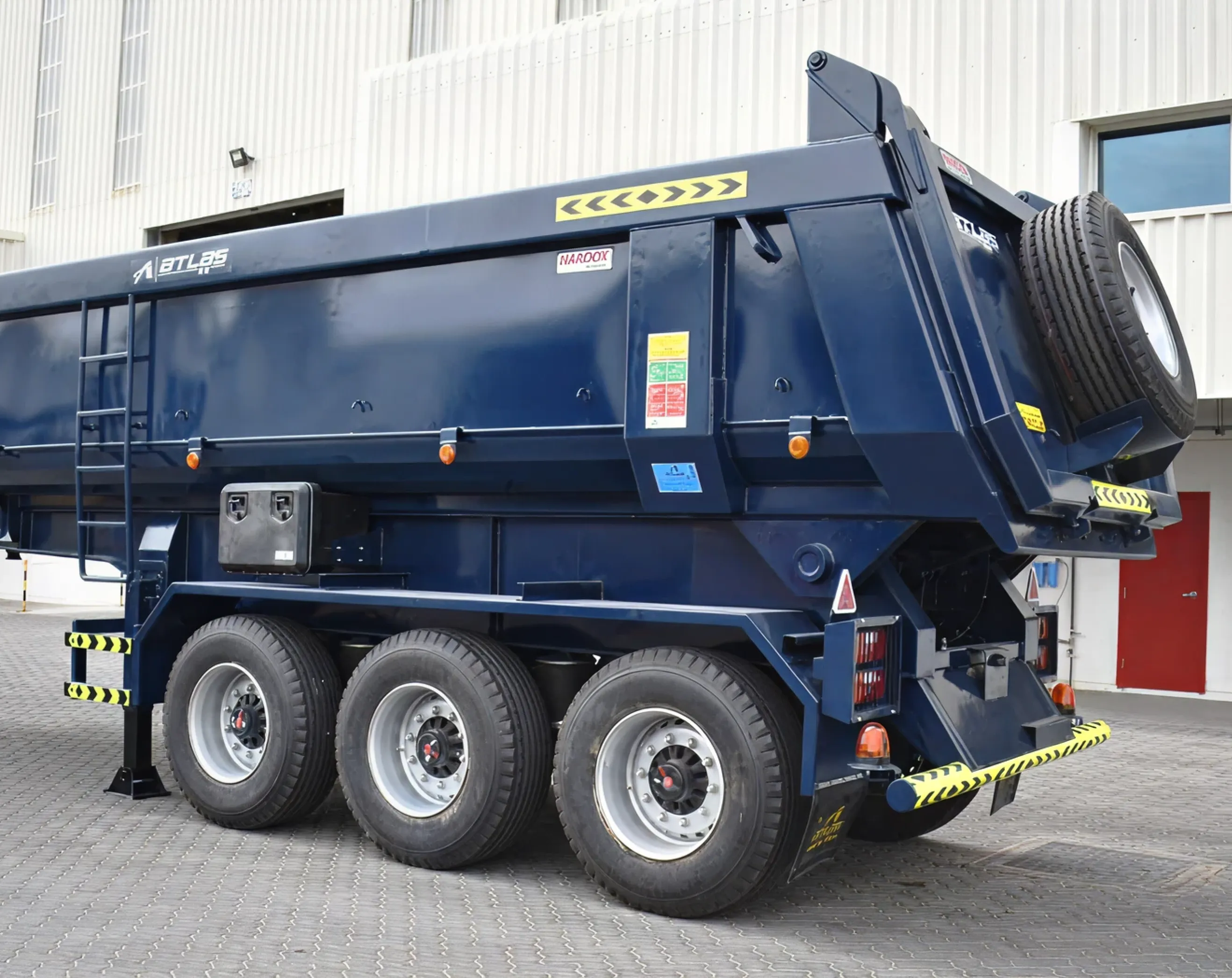

Tipper Semi Trailer

Capacity: 18-75 Cu.M

Main Frame/Chassis made of hot rolled / Fabricated I Beams ,Material - Mild Steel

Mild Steel welded construction

Capacity: 18-75 Cu.M

Main Frame/Chassis made of hot rolled / Fabricated I Beams ,Material - Mild Steel

Mild Steel welded construction

Single acting front end mounted hydraulics

Tandem/ Tridem axles with heavy duty suspension

Top hinged tail gate with automatic opening lock

Heavy duty hinged type stabilizers

High Quality External Epoxy Paint System, in single color of client’s choice

Tipper Body

Capacity: 18 cbm

Mild Steel welded construction

Single acting front end mounted hydraulics

View Drawings

Capacity: 18 cbm

Mild Steel welded construction

Single acting front end mounted hydraulics

Top hinged tail gate with automatic opening lock

High Quality External Epoxy Paint System, in single color of client’s choice

View Drawings

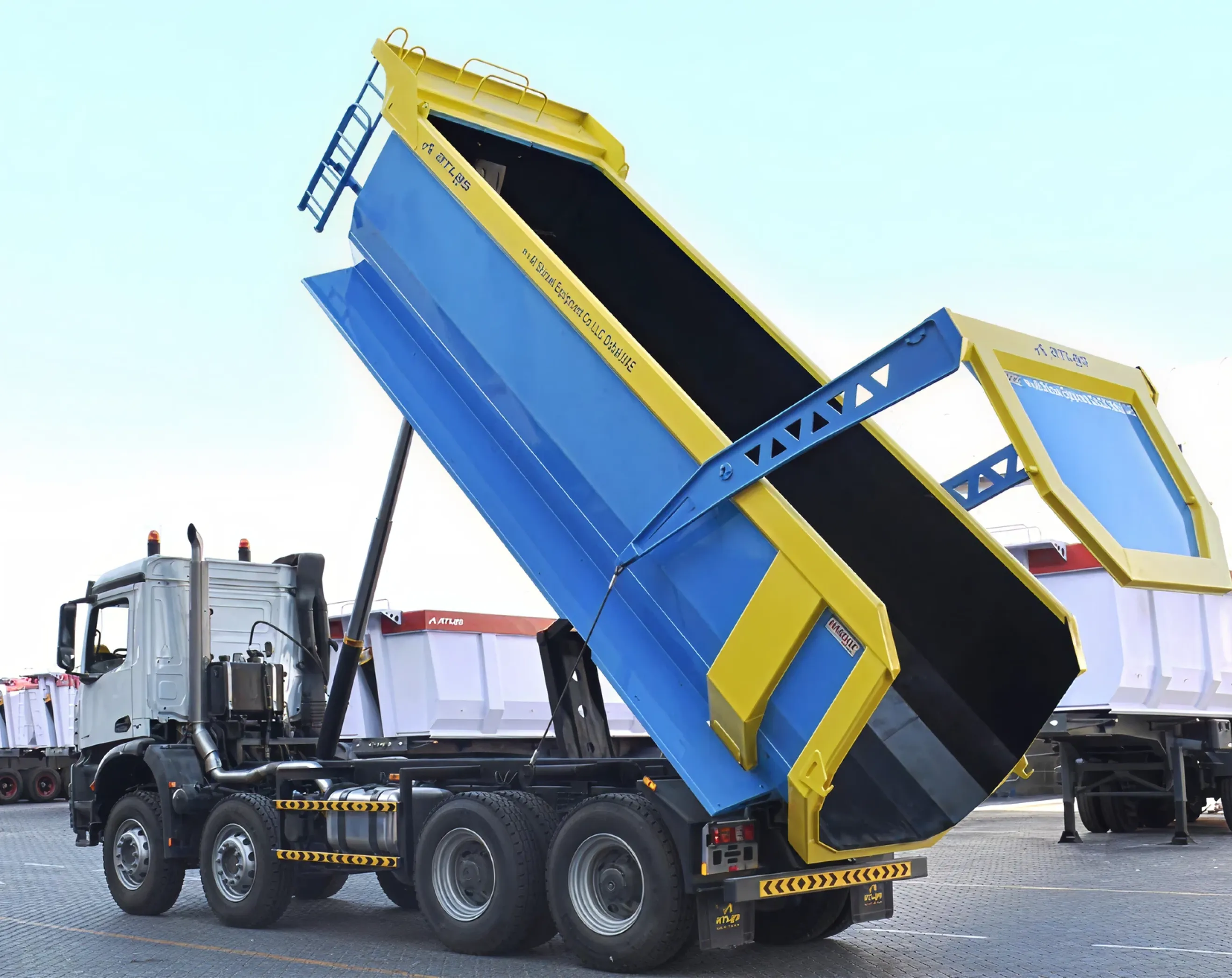

Rock Tipper Body

Capacity: 14-25 Cu.M

Body is made of HARDOX high-resistant steel plate which is highly durable and wear resistant

Single acting front end mounted hydraulics

Capacity: 14-25 Cu.M

Body is made of HARDOX high-resistant steel plate which is highly durable and wear resistant

Single acting front end mounted hydraulics

Top hinged Scow End tail gate with automatic opening lock/ scow end without door

High Quality External Epoxy Paint System, in single color of client’s choice

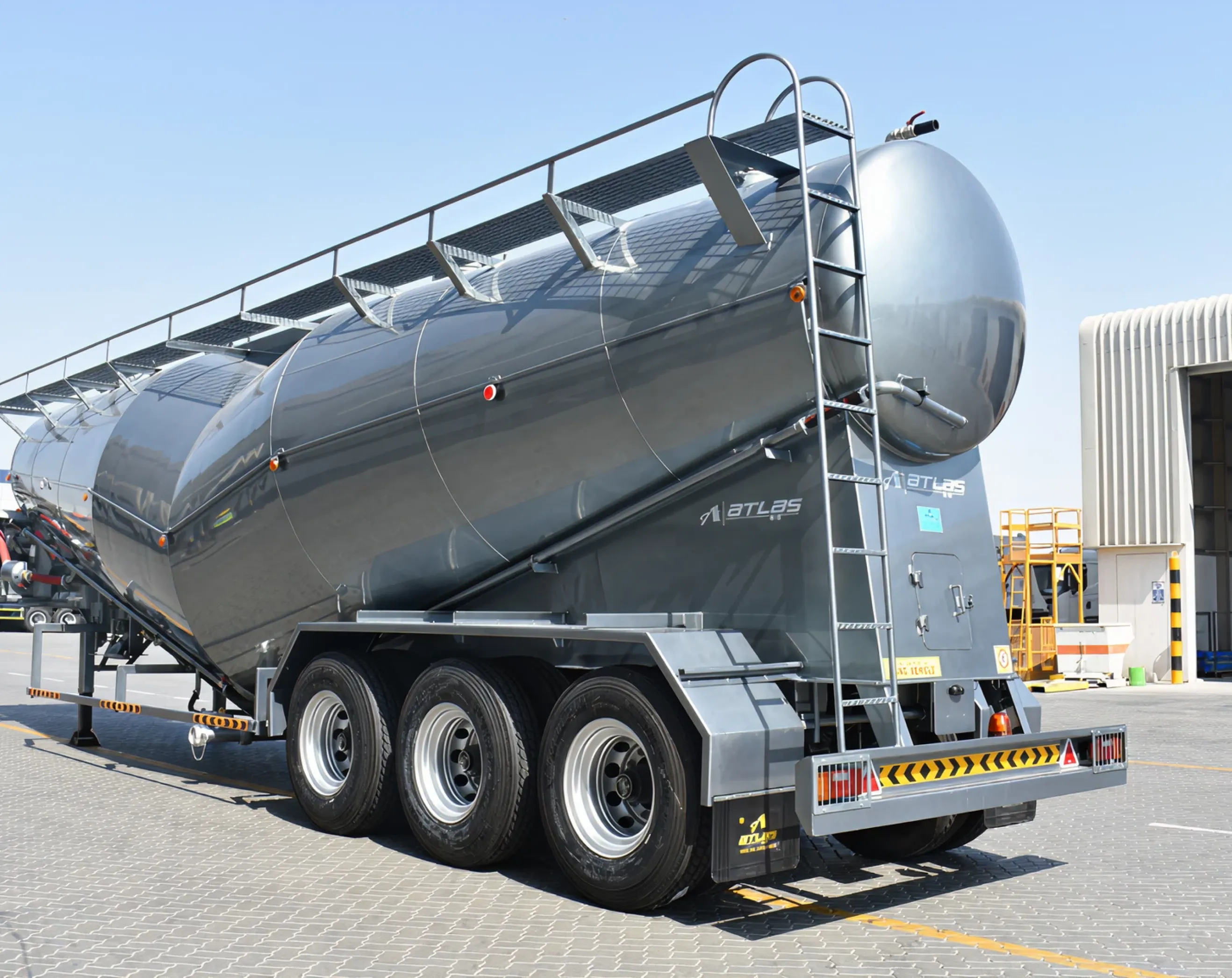

Cement Bulk Carrier

Capacity: 25-62 Cu.M

Heavy Duty Chassis made of High yield strength material Strenx 700 from SSAB

Mild Steel welded construction

Capacity: 25-62 Cu.M

Heavy Duty Chassis made of High yield strength material Strenx 700 from SSAB

Mild Steel welded construction

Tandem/ Tridem axles with heavy duty suspension

'V' type self supporting design

Air Cooled Diesel Engine Driven Piston/Screw compressor

Aeration system from Hermanns (Germany)

High Quality External Epoxy Paint System, in single color of client’s choice

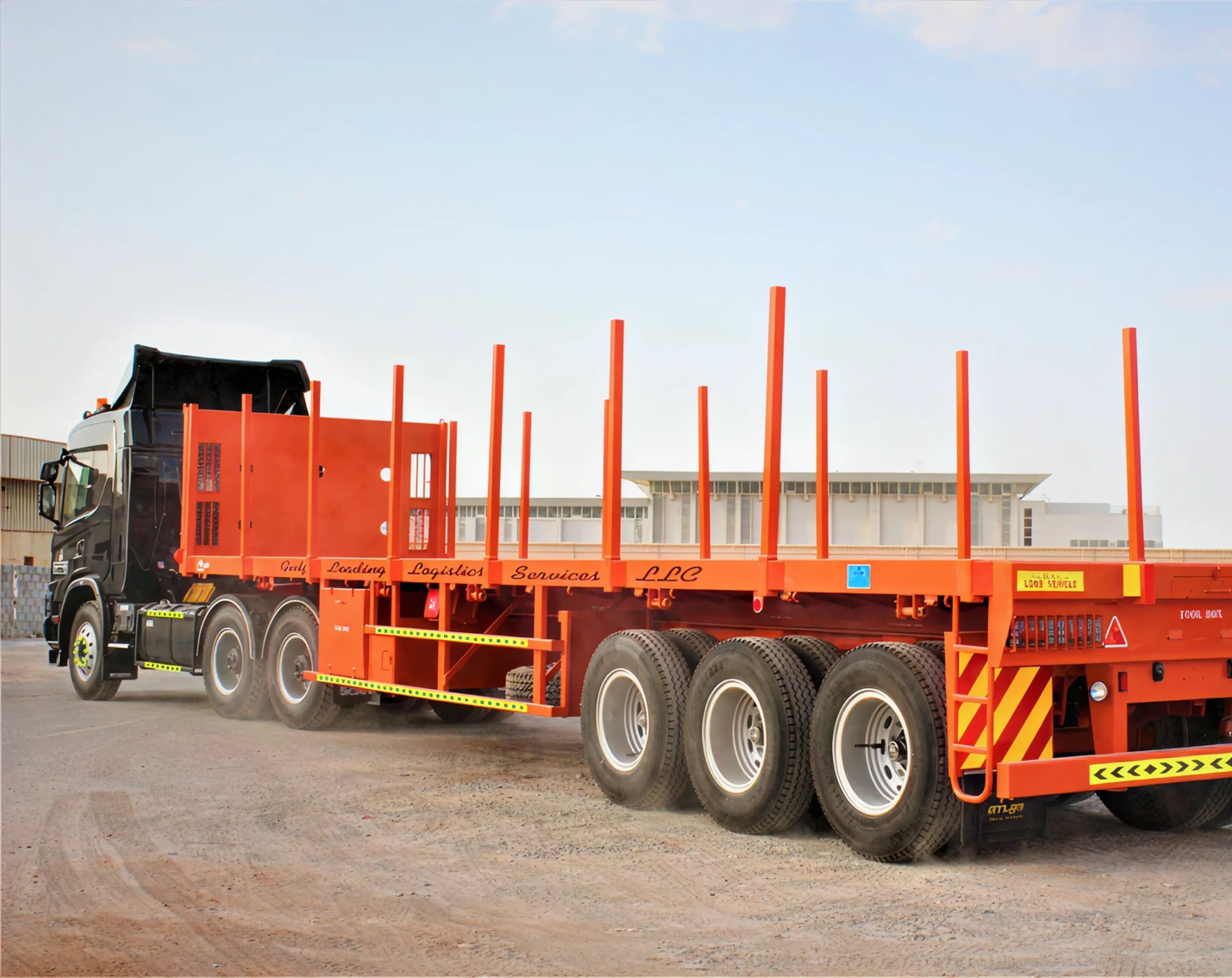

Flat Bed Semi Trailer

Capacity: 30-60 ton

Main Frame/Chassis made of hot rolled / Fabricated I Beams, Material - Mild Steel

Mild Steel welded construction

Capacity: 30-60 ton

Main Frame/Chassis made of hot rolled / Fabricated I Beams, Material - Mild Steel

Mild Steel welded construction

Chequered plate/ Wooden floor

Options of Pipe grills / mesh panels / corrugated panels / drop side panels

Tandem/ Tridem axles with heavy duty suspension

High Quality External Epoxy Paint System, in single color of client’s choice

Cargo Body / Block Carrier

Various bodies to suit different chassis and applications

Drop sides/ block cargo/ flat bed with crane application

Mild Steel welded construction

Various bodies to suit different chassis and applications

Drop sides/ block cargo/ flat bed with crane application

Mild Steel welded construction

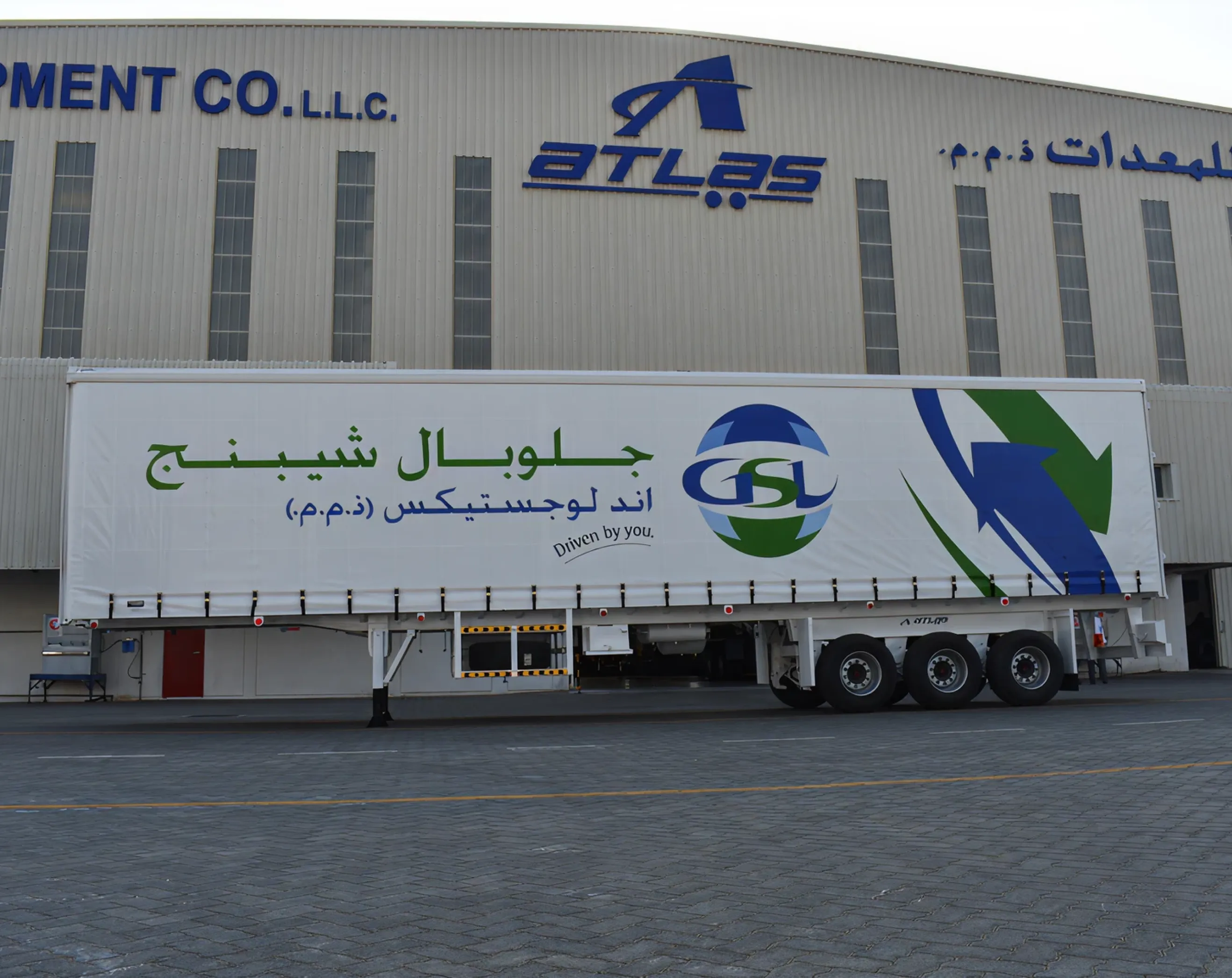

Curtain Side Semi Trailer

Capacity: 35 ton

Front panel - fixed headboard with steel section frame

Rear panel - double wing rear doors with container type locking mechanism

Capacity: 35 ton

Front panel - fixed headboard with steel section frame

Rear panel - double wing rear doors with container type locking mechanism

Sliding type curtain of European origin

Heavy Duty Landing Legs and Kingpin

High Quality External Epoxy Paint System, in single color of client’s choice

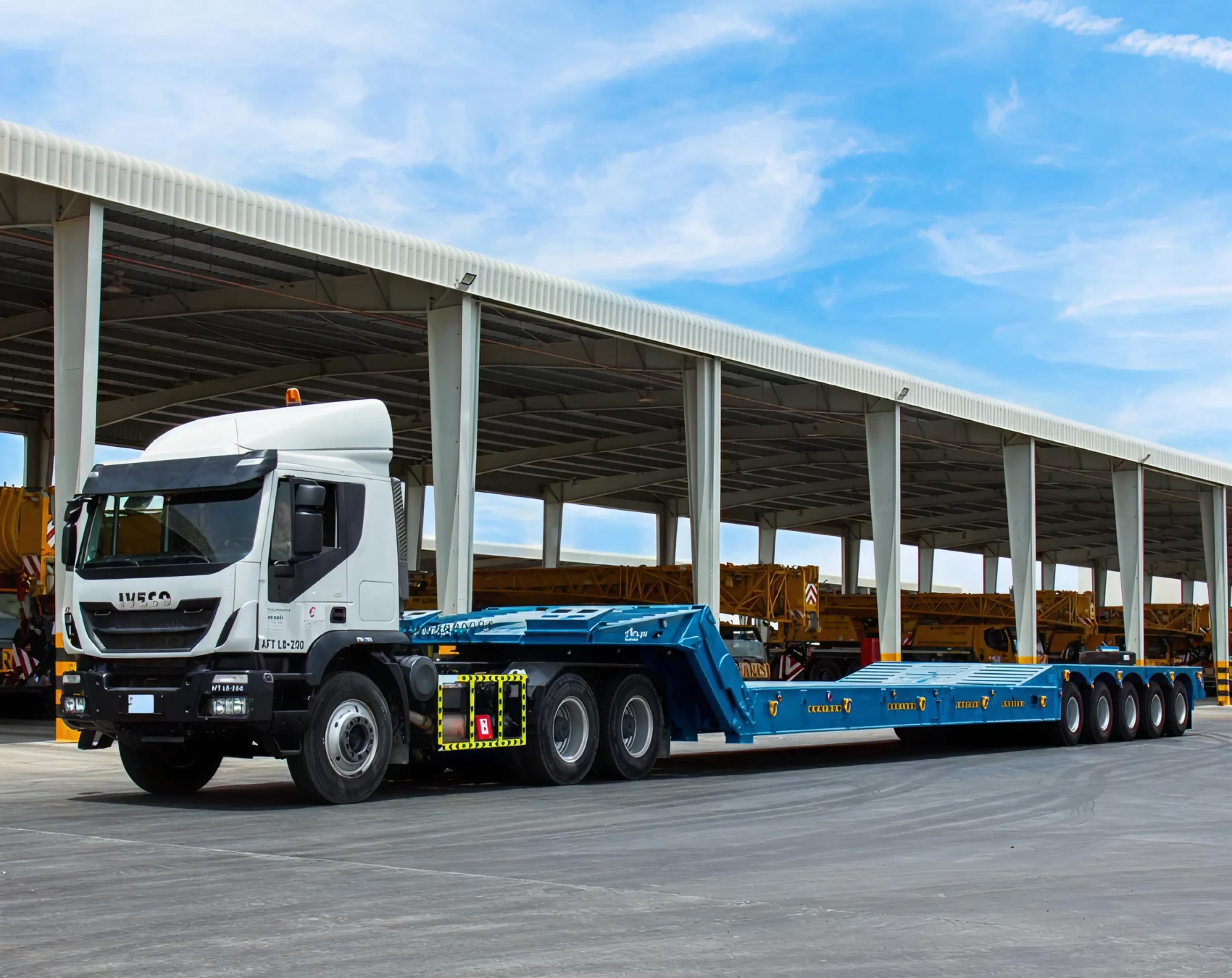

Low Bed Semi Trailer

Capacity: 30-100 ton

Heavy Duty Hot Rolled Chassis made of Mild Steel

Mild Steel welded construction

Capacity: 30-100 ton

Heavy Duty Hot Rolled Chassis made of Mild Steel

Mild Steel welded construction

Tandem/ Tridem axles with heavy duty suspension

Chequered plate/ Wooden floor

Front (Kneel Down) and rear loading Options

Hydraulic/ spring assisted loading ramps at rear - full width/ foldable (optional)

High Quality External Epoxy Paint System, in single color of client’s choice

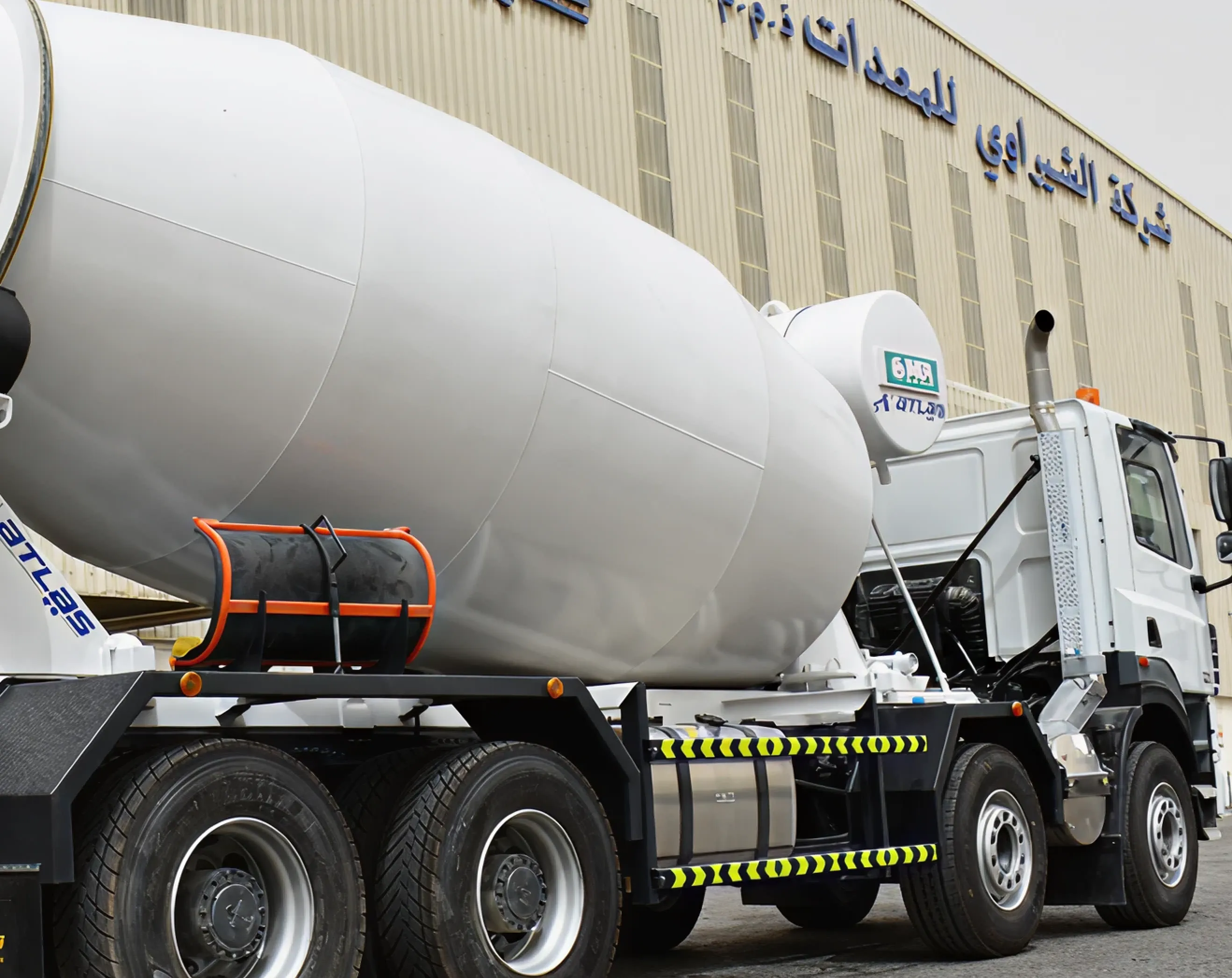

Transit Mixer

Capacity: 9/10/12/14 Cu.M

Licensed manufacturer of IMER transit mixers

High wearing resistant hard steel

Capacity: 9/10/12/14 Cu.M

Licensed manufacturer of IMER transit mixers

High wearing resistant hard steel

Water tank - 650 - 1000 ltrs

PTO/ separate engine driven transmission

High Quality External Epoxy Paint System, in single color of client’s choice

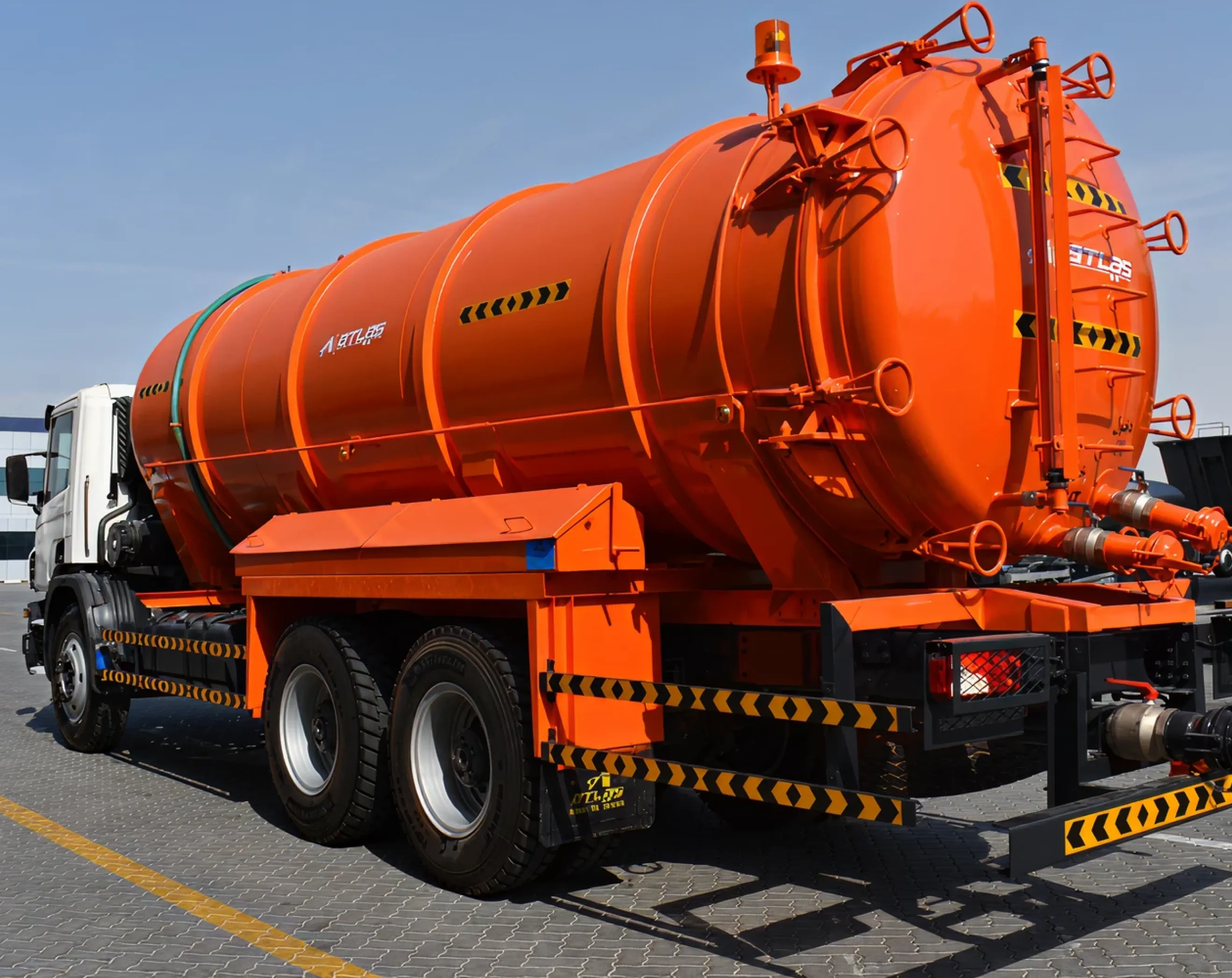

Vacuum Tanker / Cesspit Emptier

Capacity: 1000-5000 IG

Mild Steel welded construction

Mechanical/Hydraulic Fully opening rear door with security clamps

View Drawings

Capacity: 1000-5000 IG

Mild Steel welded construction

Mechanical/Hydraulic Fully opening rear door with security clamps

PTO/ separate engine driven vacuum pump from Europe

Internal coating - coal tar epoxy system

External finish - epoxy paint system in single color of client’s choice

View Drawings

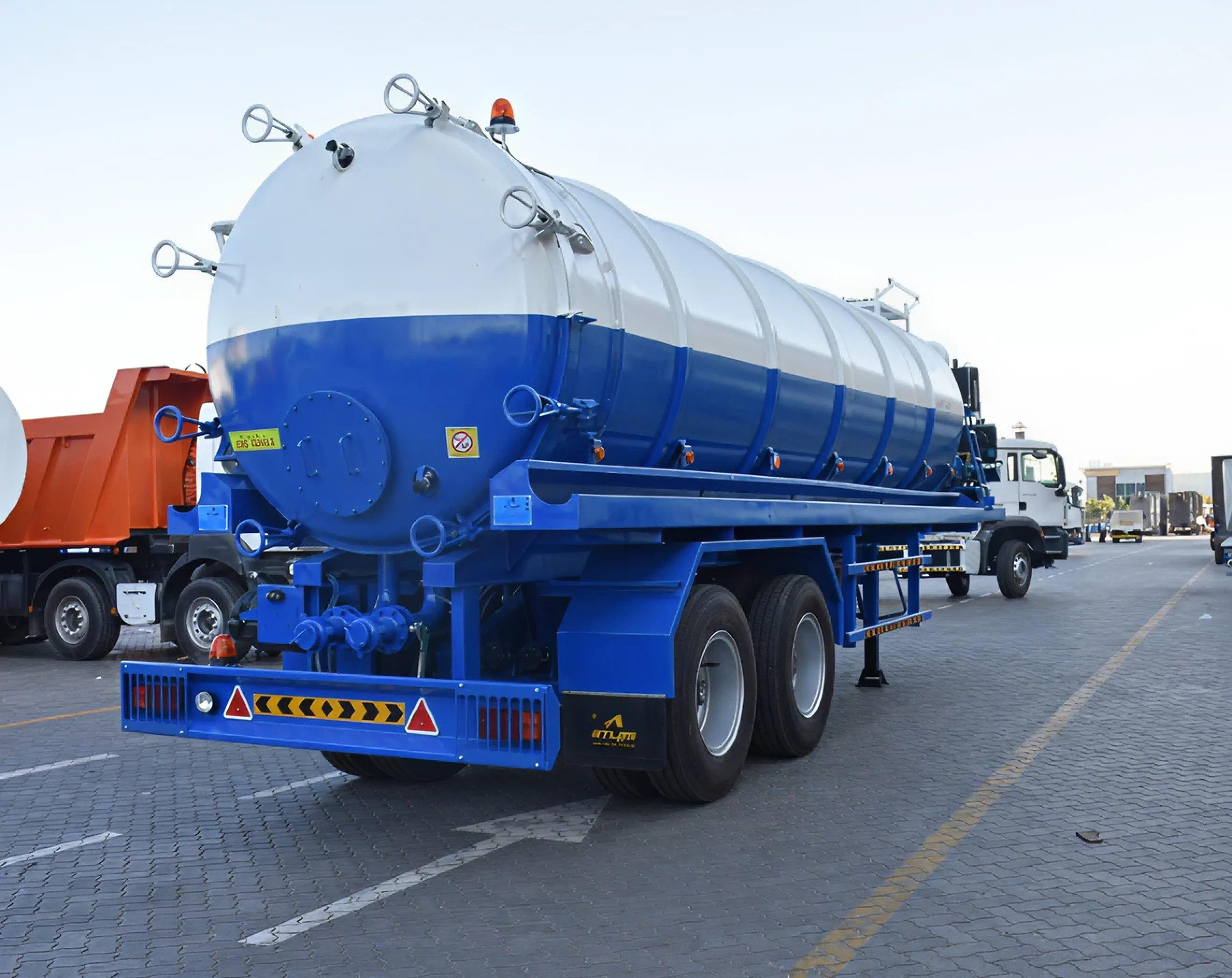

Vacuum Tanker/cesspit Emptier Semi Trailer

Capacity: 6000-10000 IG

Main Frame/Chassis made of hot rolled / Fabricated I Beams , Material - Mild Steel

Mild Steel welded construction

Capacity: 6000-10000 IG

Main Frame/Chassis made of hot rolled / Fabricated I Beams , Material - Mild Steel

Mild Steel welded construction

Tandem/ Tridem axles with heavy duty suspension

Mechanical/Hydraulic Fully opening rear door with security clamps

PTO/ separate engine driven vacuum pump from Europe

Internal coating - coal tar epoxy system

External finish - epoxy paint system in single colour of client’s choice

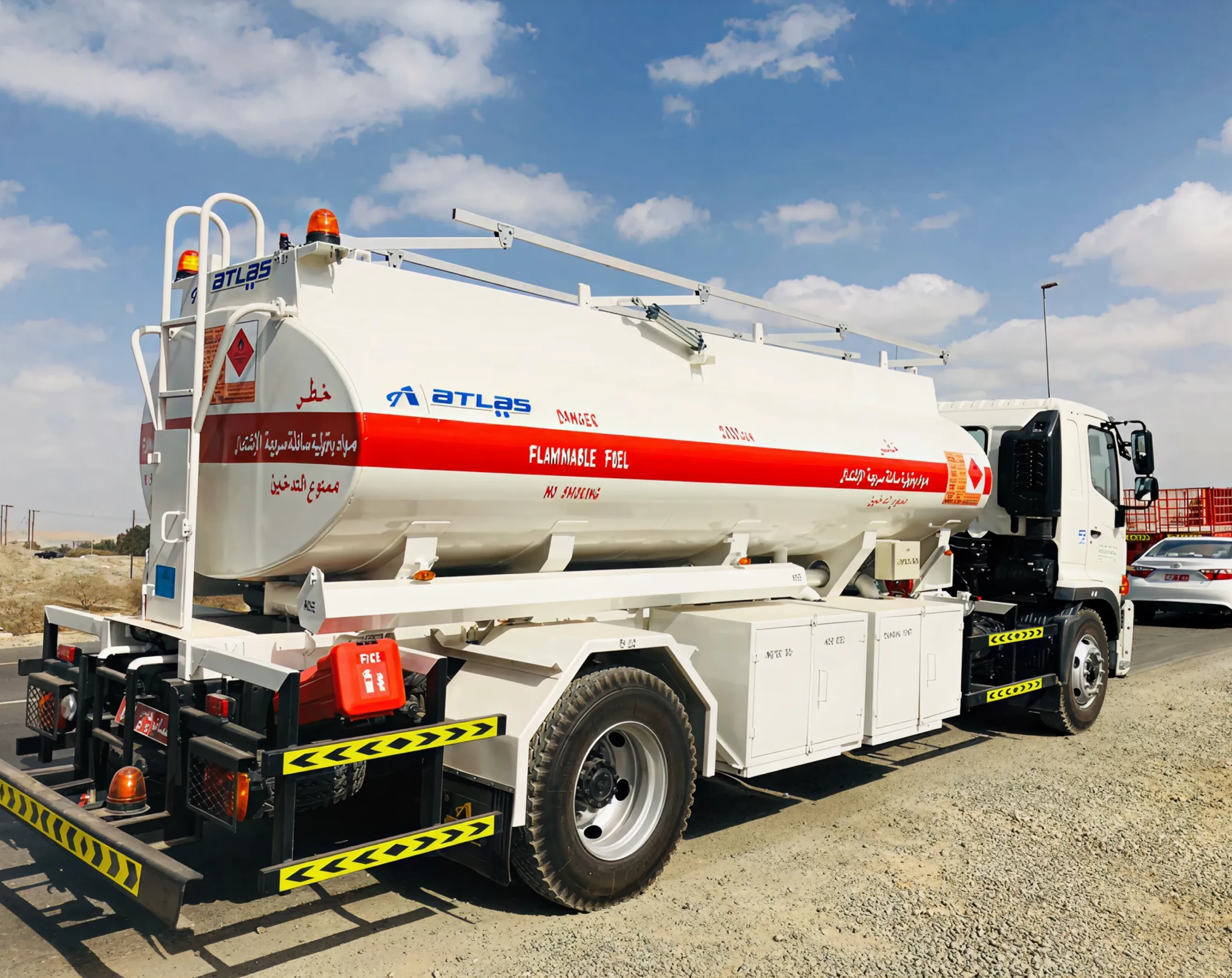

Fuel Tanker

Capacity: 1000-5000 IG

Thoroughly welded Mild Steel construction

PTO driven pump / flow meter / hose reel with dispensing system (optional)

Capacity: 1000-5000 IG

Thoroughly welded Mild Steel construction

PTO driven pump / flow meter / hose reel with dispensing system (optional)

Suitable for top loading/ bottom loading with overfill protection system

External coating - epoxy paint system in single colour of client’s choice

Internal coating - to suit content (optional)

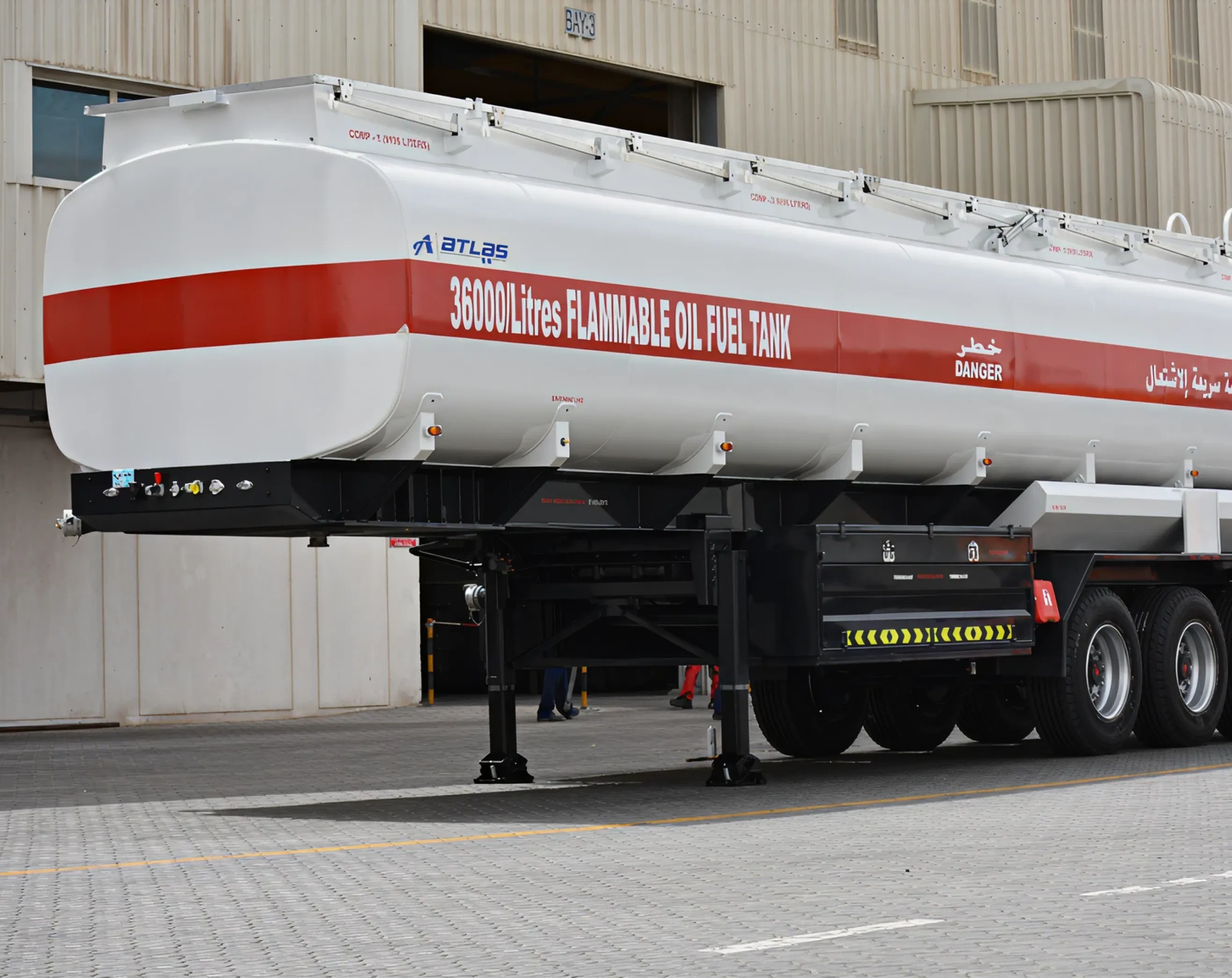

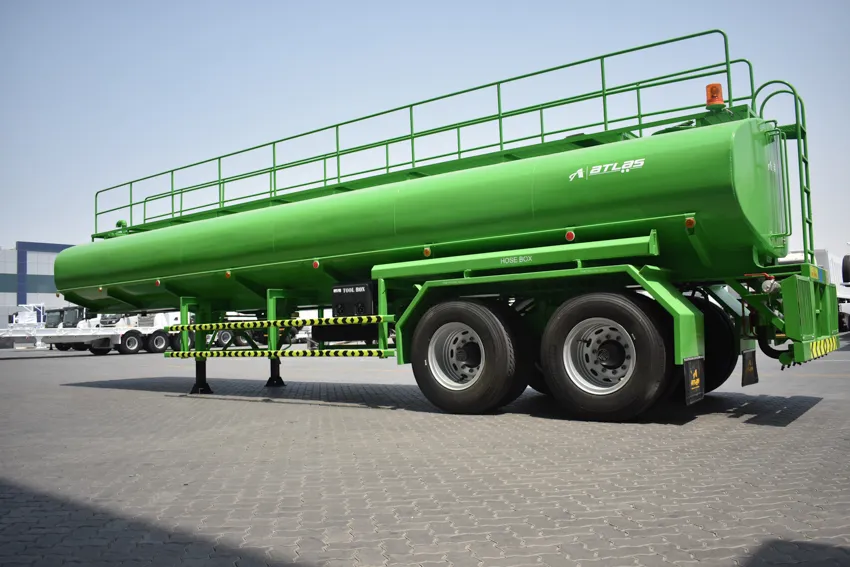

Fuel Tanker Semi Trailer

Capacity: 6000-13500 IG

Main Frame/Chassis made of hot rolled / Fabricated I Beams, Material - Mild Steel

Thoroughly welded Mild Steel construction

Capacity: 6000-13500 IG

Main Frame/Chassis made of hot rolled / Fabricated I Beams, Material - Mild Steel

Thoroughly welded Mild Steel construction

Suitable for top loading/ bottom loading with overfill protection system

Tandem/ Tridem axles with heavy duty suspension

External coating - epoxy paint system in single colour of client’s choice

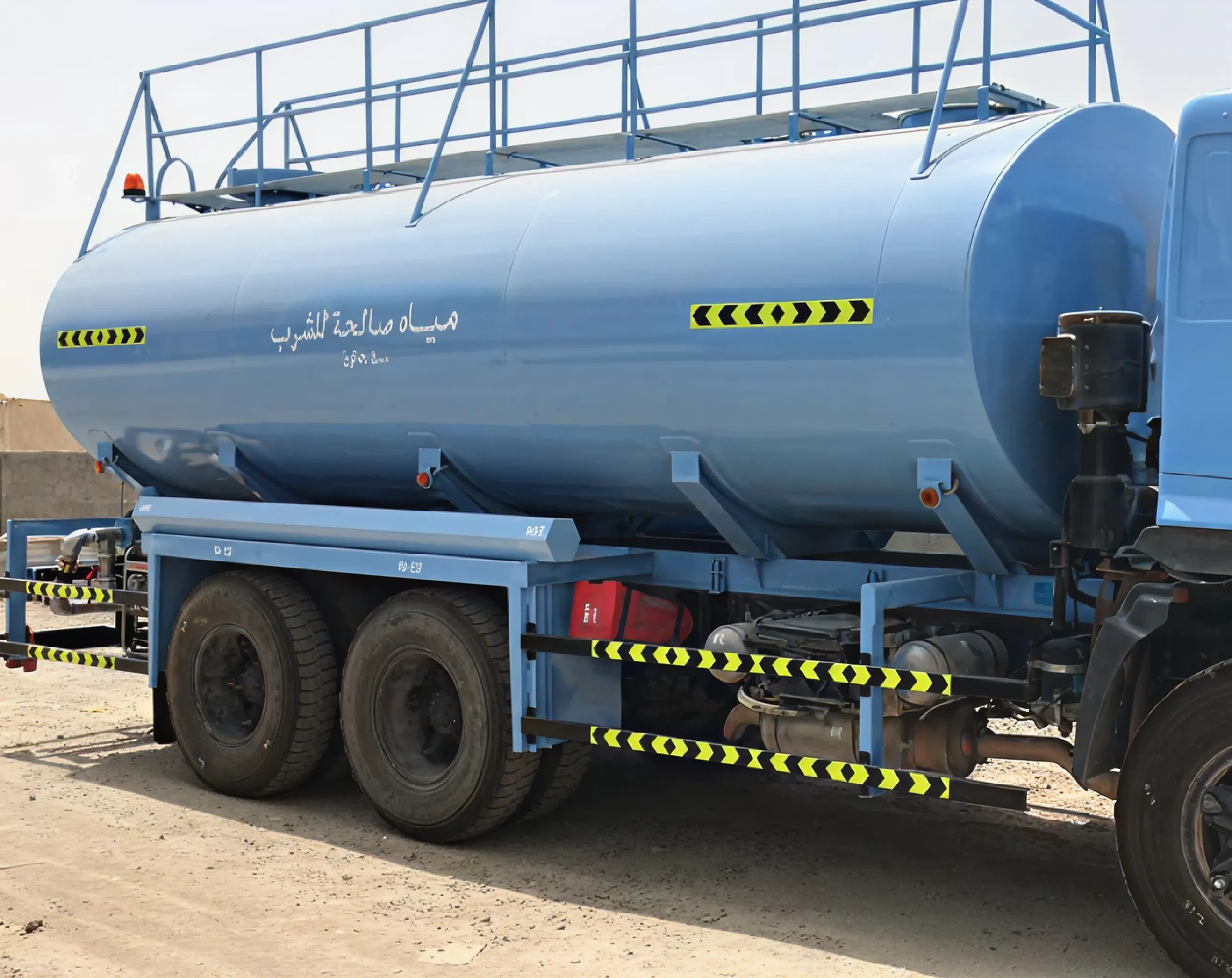

Water Tanker

Capacity: 750-5000 IG

Thoroughly welded Mild Steel construction

Internal coating - epoxy coat to suit content

View Drawings

Capacity: 750-5000 IG

Thoroughly welded Mild Steel construction

Internal coating - epoxy coat to suit content

External coating - epoxy paint system in single colour of client’s choice

View Drawings

Water Tanker Semi Trailer

Capacity: 6000-12000 IG

Main Frame/Chassis made of hot rolled / Fabricated I Beams, Material - Mild Steel

Thoroughly welded Mild Steel construction

Capacity: 6000-12000 IG

Main Frame/Chassis made of hot rolled / Fabricated I Beams, Material - Mild Steel

Thoroughly welded Mild Steel construction

Petrol / diesel engine driven pump

Internal coating - epoxy coat to suit content

External coating - epoxy paint system in single colour of client’s choice

Special Products

Jetting Tank

Car Carrier on Rigid Chassis

Oil Field Flat Bed Trailers with Roller at rear

Jetting Tank

Car Carrier on Rigid Chassis

Oil Field Flat Bed Trailers with Roller at rear

Acid Transport Trailer

Waste Transfer Semi Trailer

A-Frame Trailer

Bitumen Tanker Semi Trailer and Skid Mounted Storage Tanks

Crude Oil Transport Trailer

Fuel Tank Draw Bar Trailer
